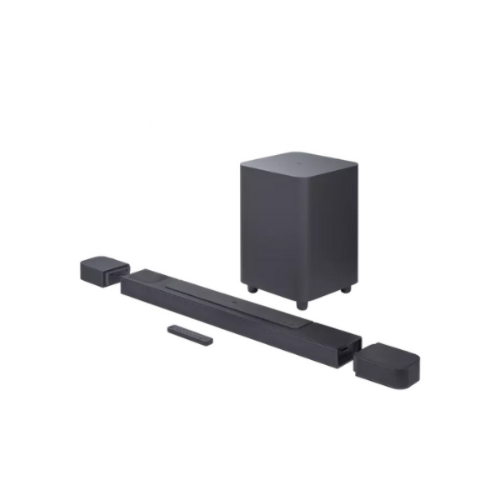

JBL SOUNDBAR 7.1.4 Channel Power Output 880W

General Specifications
Model
BAR 1000
Sound system
7.1.4 channel
Power supply
100 – 240V AC, ~ 50/60Hz
Networked standby power
< 2.0W
Operating temperature
0°C – 45°C

Audio Specifications
Total speaker power output (Max @THD 1%)
880W
Soundbar output power (Max @THD 1%)
440W
Surround speaker output power (Max @THD 1%)
2x 70W
Subwoofer output power (Max. @THD 1%)
300 W
Soundbar transducer
5x (46×90)mm racetrack drivers, 3x 0.75″ (20mm) tweeters, 2x 2.75″ (70mm) up-firing full-range drivers
Surround speaker transducer
0.75″ (20mm) tweeters, 2.75″ (70mm) up-firing full-range drivers
Subwoofer transducer
10” (260mm)
Frequency response
33Hz – 20kHz (-6dB)
Audio inputs
1 Optical, Bluetooth, USB (USB playback is available in US version. For other versions, USB is for Service only.)

Dimensions
Total soundbar dimensions (W x H x D)
1194 x 56 x 125mm / 47″ x 2.2″ x 4.9″
Main soundbar dimensions (W x H x D)
884 x 56 x 125 mm / 34.8″ x 2.2″ x 4.9″
Detachable surround speaker dimensions (each) (W x H x D)
155 x 56 x 125 mm / 6.1″ x 2.2″ x 4.9″
Subwoofer dimensions (W x H x D)
305 x 440.4 x 305 mm / 12″ x 17.3″ x 12″
Soundbar weight
3.7 kg / 8.2 lbs
Detachable surround speaker weight (each)
1.4kg / 3.1 lbs
Subwoofer weight
10 kg / 22 lbs
Packaging dimensions (W x H x D)
1000 x 375 x 475 mm/ 39.4″ x 14.8″ x 18.7″
Packaging Weight
19.4 kg / 42.7 lbs

Control and Connection Specifications
USB port
Type A
USB rating
5V DC, 0.5A
Supporting file format
MP3
MP3 codec
MPEG 1 Layer 2/3, MPEG 2 Layer 3, MPEG 2.5 Layer 3
MP3 sampling rate
16 – 48 kHz
MP3 bitrate
80 – 320 kpbs
Bluetooth version
5.0
Bluetooth profile
A2DP 1.2, AVRCP 1.5
Bluetooth transmitter frequency range
2400MHz – 2483.5MHz
Bluetooth transmitter power
<15dBm (EIRP)
Wi-Fi network
IEEE 802.11 a/b/g/n/ac/ax (2.4GHz/5GHz)
2.4G Wi-Fi transmitter frequency range
2412 – 2472MHz (2.4GHz ISM Band, USA 11 Channels, Europe and others 13 channels)
2.4G Wi-Fi transmitter power
< 20dBm (EIRP)
5G Wi-Fi transmitter frequency range
5.15 – 5.35GHz, 5.470-5.725GHz, 5.725 – 5.825GHz
5G Wi-Fi transmitter power
5.15-5.25GHz <23dBm, 5.25-5.35GHz & 5.47-5.725GHz <20dBm, 5.725-5.825GHz <14dBm (EIRP)
2.4G wireless frequency range
2406 – 2474MHz
2.4G wireless power
＜10dBm (EIRP）

Battery
Lithium battery
3.635V, 3283mAh

What’s in The Box?
1x Main soundbar
2x Detachable wireless surround speakers
1x Wireless subwoofer
Remote control with 2 x batteries
Power cords (up to 8pcs depending on region SKUs)
1 x HDMI cable
2 x L-shape wall-mount bracket (main bar) + 2 x U-shape wall-mount bracket (for surround speakers) kit with screws
4 x Side caps
Quick start guide
Safety instruction and Warranty card
Wall mount template
