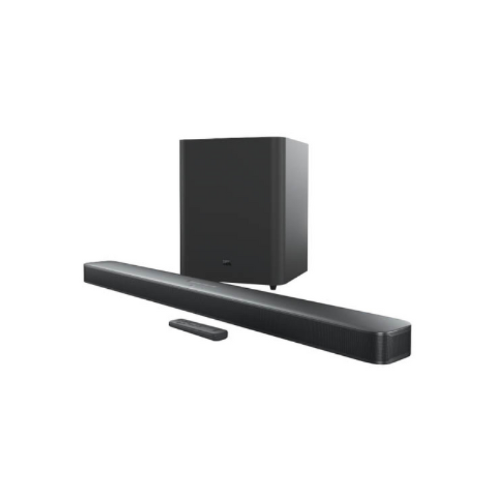

JBL 5.1 Channel Soundbar The Ultimate Cinematic Experience

General Specifications
Model
Bar 5.1 CNTR (Soundbar Unit), BAR 5.1 SUB (Subwoofer Unit)
Power supply
100 – 240V AC, ~ 50/60Hz
Soundbar output power (Max. @THD 1%) 5 x 50W
Subwoofer output power (Max. @THD 1%) 300W
standby power <0.5W
networked standby power <2.0W
Operating temperature 0°C – 45°C
BAR 5.1 SURROUND is in compliance with European Commission Regulation (EC) No 1275/2008 and (EU) No 801/2013.Yes
Off Mode N/A
Network Standby <2.0W
Time to standby <20minutes
* Standby
in the condition of all wireless connections of Soundbar are deactivated, if no provide any audio or video signal to the Soundbar unit, the Soundbar unit will automatically into standby mode in 10 minutes.

* Networked standby
in the condition of any wireless connection of Soundbar is activated, if no provide any audio or video signal to the Soundbar unit, the Subwoofer and Soundbar unit will automatically into networked standby mode in 10 minutes.
Any audio or video recover will bring device from standby to operation mode. Yes

Audio Specifications
Total speaker power output (Max. @THD 1%) 550W
Max SPL 103dB

Frequency response
40Hz – 20KHz

Audio inputs
1 Optical, Bluetooth, USB (USB playback is available in US version. For other versions, USB is for Service only.)

MP3 Codec
MPEG 1 Layer 2/3, MPEG 2 Layer 3, MPEG 2.5 Layer 3
MP3 sampling rate
16KHz – 48 KHz
MP3 bitrate
80kbps – 320kbps

Dimensions
Soundbar transducer
5 x 4690” racetrack drivers +2 x 1.25” side-firing tweeters
Subwoofer transducer 10”

Dimensions (W x H x D)
1018 x 58 x 100mm / 40” x 2.28” x 3.94” (Soundbar); 305 x 440 x 305mm / 12” x 17.3” x 12” (Subwoofer)

Weight
2.85KG (Soundbar); 10.62Kg (Subwoofer)
Control and Connection Specifications
USB port Type A
USB rating 5V DC, 0.5A
Supporting file format mp3, wav
Bluetooth version 4.2
Bluetooth profile
A2DP V1.3, AVRCP V1.5
Bluetooth frequency range 2402MHz – 2480MHz
Bluetooth Max. transmitting power <11dBm (EIRP)

Modulation Type
GFSK, π/4 DQPSK, 8DPSK
Wi-Fi network
IEEE 802.11 a/b/g/n/ac (2.4GHz/5GHz)
2.4G Wi-Fi frequency range
2412 – 2472MHz (2.4GHz ISM Band, USA 11 Channels, Europe and others 13 Channels)
2.4G Wi-Fi Max. transmitting power <20dBm

Modulation Type
DBPSK, DQPSK, CCK, QPSK, BPSK, 16QAM, 64QAM
5G Wi-Fi frequency range
5.15 – 5.35GHz, 5.725 – 5.825GHz
5G Wi-Fi Max. transmitting power <22dBm

Modulation Type
QPSK, BPSK, 16QAM, 64QAM, 256QAM
5G Wireless frequency range
5161.35 – 5245.35MHz, 5736.35 – 5820.35MHz
5G Max. transmitting power <9dBm (EIRP)
Modulation Type π/4 DQPSK
Video Specifications
HDMI Video input 1
HDMI Video output (With Audio return channel) 1
HDMI HDCP version 2.2
