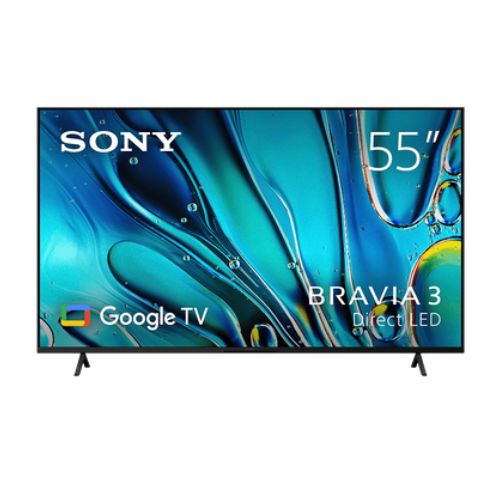

SONY 55 K-55S30 4K HDR Google Smart TV

TV System
TV System (Analog)
M * Only for the United States/Canada/Mexico models. Customers in other countries/regions, please refer to the specifications in the Reference Guide.
Tuner Channel Coverage (Analog)
VHF: 2-13/UHF: 14-69/CATV: 1-135
TV System (Digital Terrestrial)
ATSC * Only for the United States/Canada/Mexico models. Customers in other countries/regions, please refer to the specifications in the Reference Guide.
Tuner Channel Coverage (Digital Terrestrial)
VHF: 2-13/UHF: 14-69 * Only for the United States/Canada/Mexico models. Customers in other countries/regions, please refer to the specifications in the Reference Guide.
TV System (Digital Cable)
Clear QAM * Only for the United States/Canada/Mexico models. Customers in other countries/regions, please refer to the specifications in the Reference Guide.
Tuner Channel Coverage (Digital Cable)
CATV: 1-135 * Only for the United States/Canada/Mexico models. Customers in other countries/regions, please refer to the specifications in the Reference Guide.
Number of Tuners (Terrestrial/Cable)
1(Digital/Analog)
Color System
NTSC
Operating System
Google TV
On-board Storage (GB)
16GB
Display Features
Display Type
Display Specs
Screen Size (inch, measured diagonally) 55″(54.6″)
Screen Size for WEB(diagonal, cm, integer or 1st decimal) 139 cm
Display resolution (H x V, pixels) 3840 x 2160
Viewing Angle (Right/Left)178(89/89) degree
Viewing Angle (Up/Down)178(89/89) degree
Display Resolution QFHD
Aspect Ratio 16:9
Backlight type
Direct LED
Audio Specs
Channel 2ch
Audio Power Output 10W + 10W
Speaker Position
Down Firing
Bass/Treble/Balance
Balance
Speaker type
Bass Reflex Speaker
Speaker Configuration
Full Range (Bass Reflex) x 2
Digital audio out (Optical) format
Two channel linear PCM: 48kHz 16bits, Dolby Audio
Network Features
APPLE AIRPLAY Yes
APPLE HOMEKIT Yes
Wi-Fi Certified Yes
Wi-Fi Standard a/b/g/n/ac/ax
Wi-Fi Frequency 2.4GHz/5GHz/6GHz
Wireless LAN
Integrated
Control Menu Yes
ECO Dashboard Yes
Sensing Features
sensor Light
Energy Saving & Efficiency
Dynamic Backlight Control Yes
Power Saving Mode / Back Light Off Mode Yes
Accessibility Features
Audio Description Yes
Closed Captions (Digital)
Closed Caption
Text Magnification Yes
Accessibility Shortcut Yes
Voice Search Yes
Accessible Initial setup with TalkBack Yes
TALKBACK Yes
Switch Access Yes
Customizing Capability
RS-232C Control Yes
Design Features
STAND COLOR
Black
BEZEL DESIGN
Flush Surface
Cable Management Yes
Frame color
Black
Stand design
Slim Wedged Stand
STAND POSITION
1way position (Outside)
Regulation and Standard Compliance
VESA® Hole Spacing Compatible Yes
VESA® Hole Pitch(W x H) 300 x 300 mm / 11 7/8 x 11 7/8 inch
Measurements (Approx.)
Dimension of TV without Stand (W x H x D)
1233 x 713 x 72 mm / 48 5/8 x 28 1/8 x 2 7/8 inch
Dimension of Package Carton (W x H x D)
1362 x 847 x 160 mm / 53 5/8 x 33 3/8 x 6 3/8 inch
AC Cable Length 1600mm
TV with Stand (Standard position) (W x H x D)
1233 x 784 x 334 mm / 48 5/8 x 30 7/8 x 13 1/4 inch
STAND WIDTH (STANDARD POSITION) 1028 mm / 40 1/2 inch
Weights (Approx.)
Weight of TV without Stand 16.0 kg / 35.3 lb
Weight of Package Carton(Gross) 22 kg / 48.5lb.
TV with Stand (Standard position) 16.3 kg / 36.0 lb
Carton Spec
Max Qty of carton stacking (vertical) 6
Max Qty of carton stacking (horizontal) *only for Shop Front N/A
Supplied Accessories
Operating Instructions EN,FR,ES
Batteries LR03
AC Power Cord Spec
Bundle (C7L) (US) (2pin) (flat blades)
Quick Setup Guide / Supplement CUE (GA)
EN,FR,ES,PT
Table Top Stand
Separate (Assembly required)
Voice Remote Control (Supply)
RMF-TX820U
Optional Accessories
Wallmount Bracket
Sony original Wall-Mount Bracket * Please refer this compatibility list: https://www.sony.net/wall-mount-bracket
Audio　Features
Clear Phase Yes
S-Master
S-Master Digital Amplifier
Auto Surround Yes
Dolby audio format support
Dolby Audio, Dolby Atmos
HDMI Audio Return Channel(ARC) Yes (eARC/ARC)
Auto Mute (on no signal) Yes
HDMI input Audio format
7.1 channel linear PCM: 32/44.1/48/88.2/96/176.4/192kHz 16/20/24bits, Dolby Audio, Dolby Atmos
ARC output format
Two channel linear PCM: 48kHz 16bits, Dolby Audio, Dolby Atmos
Speaker Type-2
X-Balanced Speaker
Inputs and Outputs
HDMI Signal
4096x2160p(24,60Hz), 3840x2160p(24,30,60Hz), 1080p(24,30,60Hz), 1080i(60Hz), 720p(24,30,60Hz), 480p, 480i
HDCP
HDCP2.3(for HDMI1/2/3/4)
Bluetooth profile support
Version 5.3,HID/HOGP/SPP/A2DP/AVRCP
4K 60P High-Quality formats
HDMI IN1, IN2, IN3, IN4 ports for 4K(up to 18Gbps) signal
AC Power Input
C8 INLET(REAR)
RF (Terrestrial/Cable) Connection Input(s) 1(Side)
HDMI inputs total 4(4Side)
Digital Audio Output(s) 1(Side)
USB ports 2(Side)
Ethernet inputs 1(Side) RS-232C Input(s)
1(Side) * Only for the United States/Canada/Mexico/Dominican Republic models.
HDMI PC Input Format
640×480(31.5kHz,60Hz), 800×600(37.9kHz,60Hz), 1024×768(48.4kHz,60Hz), 1280×1024(64.0kHz,60Hz), 1152×864(67.5kHz,75Hz), 1600×900(55.9kHz,60Hz), 1680×1050(65.3kHz,60Hz), 1920×1080(67.5kHz,60Hz), 3840x2160p(30Hz), 3840x2160p(60Hz, 8bits)
Power
Power Requirements (voltage)
AC 120V for UL cUL AC 110-240V for other
Power Requirements (frequency)
60Hz for UL cUL 50/60Hz for other
Rated Power Consumption 202 W
Power Consumption (Standby Mode) 0.5 W
Video Features
Picture modes
Vivid, Standard, Cinema, Game, Graphics, Photo, Professional, Dolby Vision (Vivid/Bright/Dark/Game)
Auto Wide Yes
Wide Mode
Full/Vertical Fit/Horizontal Fit/Original,Full/Vertical Fit/Horizontal Fit/Original
Video Processing
4K X-Reality PRO
Motion enhancer
Motionflow XR 240 (Native 60Hz)
24p True Cinema Yes
Live Colour™ Technology Yes
CineMotion/Film Mode/Cinema Drive Yes
4K Processor
4K HDR Processor X1
HDR (High Dynamic Range) compatiblity
Yes(HDR10,HLG,Dolby Vision)
Panel Refresh Rate (Native Hertz) 60Hz
Dynamic Contrast Enhancer Yes
TRILUMINOS
Triluminos Pro
Features for PlayStation®5 Auto HDR Tone Mapping Yes
Features for PlayStation®5 Auto Genre Picture Mode Yes
Convenience Features
Features specified in HDMI2.1
eARC/ALLM
Electronic Program Guide (EPG) Yes
USB playback codecs
MPEG1:MPEG1/MPEG2 PS:MPEG2/MPEG2 TS(HDV,AVCHD):MPEG2,MPEG4,AVC,AVS,HEVC/MP4(XAVC S):AVC,MPEG4,HEVC,AV1,VP8,WMV,MotionJpeg,/AVI:MotionJpeg,HEVC,MPEG4,WMV,AVC,VP8/ASF(WMV)/MOV:AVC,HEVC,MPEG4,WMV/MKV:AVC,MPEG4,VP8,HEVC,VP9,WMV,AV1,3GPP:MPEG4,AVC,HEVC,MPEG2,WMV,VP8,AV1/MP3/ASF(WMA)/LPCM/WAV/MP4AAC/FLAC/JPEG/WEBM:AV1,VP9/AC4/ogg/AAC
Text Input Language
ARA / ENG / FIN / FRA / GER / HEB / HIN / ITA / JPN / KOR / NOR / PER / POR / RUS / SPA / THA / VIE / zh_CN / zh_TW / zh_HK
Chromecast built-in Yes
Application Store
Yes (Google Play Store)
i-Manual Yes
Parental Control Yes
Channel Block (with password)
Analog & Digital
Show/Hide Channels
Yes(Digital&Analog)
On Screen Clock Yes
Sleep Timer Yes
On/Off Timer Yes
USB drive format support Yes (Supported File System: FAT16/FAT32/NTFS)
Display Language
AFR,ARA,BUL,BEN,BOS,CAT,CZE,DAN,DEU,GRE,ENG,SPA,EST,PER,FIN,FRA,GUJ,HIN,HRV,HUN,IND,ITA,HEB,KAZ,KAN,LIT,LAV,MAC,MAL,MAR,MAY,NOB,NLD,PAN,POL,POR,RUM,RUS,SOL,SLV,ALB,SRP,SWE, zh_CN, zh_TW, zh_HK , ZUL, SWA, VIE, TAM ,TEL, THA, TUR,UKR, TGL
Auto Shut-off Yes
Auto Low Latency Mode (ALLM)
Yes (for HDMI1/2/3/4)
BUILT-IN MIC SWITCH Yes (Center)
Built-in Mic Yes
BRAVIA SYNC (INCLUDING HDMI-CEC) Yes
Optimization of HDMI input
Auto Picture Mode
General Features
Closed Captions (Analog) Yes
Demo Mode Yes(e-POP only)
SMART TV Google TV
