| CS-YU9AKH-1_CU-YU9AKH-1 | CS-YU12AKH-1_CU-YU12AKH-1 | CS-YU18AKH-1_CU-YU18AKH-1 | CS-YU24AKH-1_CU-YU24AKH-1 | CS-YU30AKH-1_CU-YU30AKH-1 | |
|---|---|---|---|---|---|
| Cooling Capacity (min-max) (kW) | 2.65 (1.00-2.78) kW | 3.52 (1.15-3.62) kW | 5.30 (1.30-5.60) kW | 6.80 (1.50-7.04) kW | 8.80 (1.70-9.10) kW |
| Cooling Capacity (min-max) (Btu/h) | 9,040 (3,410-9,480) Btu/h | 12,000 (3,920-12,300) Btu/h | 18,100 (4,430-19,100) Btu/h | 23,200 (5,120-24,000) Btu/h | 30,000 (5,800-31,000) Btu/h |
| EER (min-max) (Btu/hW) | 11.30 (14.21-10.53) Btu/hW | 10.00 (13.52-9.76) Btu/hW | 10.90 (13.84-10.16) Btu/hW | 11.90 (14.63-11.43) Btu/hW | 10.34 (14.50-9.69) Btu/hW |
| EER (min-max) (W/W) | 3.31 (4.17-3.09) W/W | 2.93 (3.97-2.87) W/W | 3.19 (4.06-2.98) W/W | 3.49 (4.29-3.35) W/W | 3.03 (4.25-2.84) W/W |
| CSPF (W/W) | 4.38 W/W (3★) | 3.98 W/W (3★) | 4.84 W/W (4★) | 4.92 W/W (4★) | – |
| Voltage (V) | 230 V | 230 V | 230 V | 230 V | 230 V |
| Current (A) | 3.80 A | 5.70 A | 7.30 A | 8.60 A | 12.70 A |
| Power Input (min-max) (W) | 800 (240-900) W | 1,200 (290-1,260) W | 1,660 (320-1,880) W | 1,950 (350-2,100) W | 2,900 (400-3,200) W |
| Moisture Removal (L/h) | 1.6 L/h | 2.0 L/h | 2.9 L/h | 3.9 L/h | 5.0 L/h |
| Moisture Removal (Pt/h) | 3.4 Pt/h | 4.2 Pt/h | 6.1 Pt/h | 8.2 Pt/h | 10.6 Pt/h |
| Indoor Unit Air Circulation | 10.3 m³/min (365 ft³/min) | 11.0 m³/min (390 ft³/min) | 12.6 m³/min (445 ft³/min) | 19.9 m³/min (700 ft³/min) | 25.5 m³/min (900 ft³/min) |
| Indoor Unit Noise Level (H / L / Q-Lo) | 38/26/21 dB(A) | 40/28/21 dB(A) | 44/34/28 dB(A) | 45/34/28 dB(A) | 51/41/38 dB(A) |

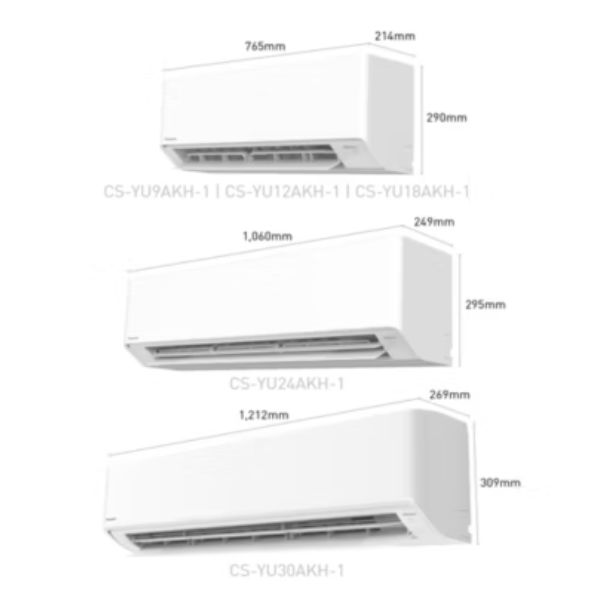

| Indoor Unit Dimensions (H x W x D) (mm) | 290 mm x 765 mm x 214 mm | 290 mm x 765 mm x 214 mm | 290 mm x 765 mm x 214 mm | 295 mm x 1,060 mm x 249 mm | 309 mm x 1,212 mm x 269 mm |
| Indoor Unit Dimensions (H x W x D) (inch) | 11-7/16 inch x 30-1/8 inch x 8-7/16 inch | 11-7/16 inch x 30-1/8 inch x 8-7/16 inch | 11-7/16 inch x 30-1/8 inch x 8-7/16 inch | 11-5/8 inch x 41-3/4 inch x 9-13/16 inch | 12-3/16 inch x 47-23/32 inch x 10-19/32 inch |
| Indoor Unit Net Weight | 8 kg (18 lb) | 8 kg (18 lb) | 9 kg (20 lb) | 12 kg (26 lb) | 15 kg (33 lb) |
| Indoor Unit Gross Weight | 9 kg (20 lb) | 9 kg (20 lb) | 10 kg (22 lb) | 15 kg (33 lb) | – |
| Outdoor Unit Air Circulation | 26.7 m³/min (940 ft³/min) | 24.3 m³/min (860 ft³/min) | 39.3 m³/min (1,390 ft³/min) | 34.9 m³/min (1,230 ft³/min) | 51.4 m³/min (1,810 ft³/min) |
| Outdoor Unit Noise Level (H) | 48 dB(A) | 51 dB(A) | 52 dB(A) | 53 dB(A) | 54 dB(A) |

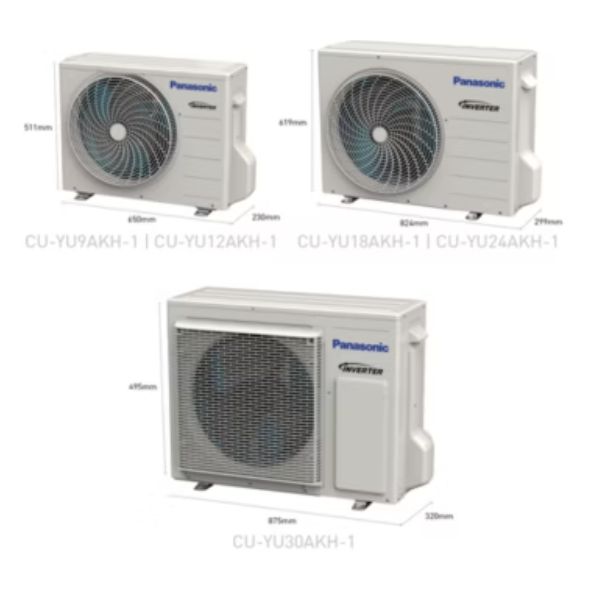

| Outdoor Unit Dimensions (H x W x D) (mm) | 511 mm x 650 mm x 230 mm | 511 mm x 650 mm x 230 mm | 619 mm x 824 mm x 299 mm | 619 mm x 824 mm x 299 mm | 695 mm x 875 mm x 320 mm |
| Outdoor Unit Dimensions (H x W x D) (inch) | 20-1/8 inch x 25-19/32 inch x 9-1/16 inch | 20-1/8 inch x 25-19/32 inch x 9-1/16 inch | 24-3/8 inch x 32-15/32 inch x 11-25/32 inch | 24-3/8 inch x 32-15/32 inch x 11-25/32 inch | 27-3/8 inch x 34-15/32 inch x 12-5/8 inch |
| Outdoor Unit Net Weight | 17 kg (37 lb) | 19 kg (42 lb) | 27 kg (60 lb) | 30 kg (66 lb) | 40 kg (88 lb) |
| Outdoor Unit Gross Weight | 19 kg (42 lb) | 21 kg (46 lb) | 30 kg (66 lb) | 33 kg (73 lb) | – |
| Refrigerant Type | R32 | R32 | R32 | R32 | R32 |
| Refrigerant Amount | 420 g | 610 g | 690 g | 870 g | 1,230 g |
| Refrigerant Pipe Diameter (Liquid Side) | ø 6.35 mm (1/4 inch) | ø 6.35 mm (1/4 inch) | ø 6.35 mm (1/4 inch) | ø 6.35 mm (1/4 inch) | ø 6.35 mm (1/4 inch) |
| Refrigerant Pipe Diameter (Gas Side) | ø 9.52 mm (3/8 inch) | ø 9.52 mm (3/8 inch) | ø 12.70 mm (1/2 inch) | ø 12.70 mm (1/2 inch) | ø 15.88 mm (5/8 inch) |
| Pipe Extension (Chargeless Pipe Length) | 7.5 m | 7.5 m | 10 m | 10 m | 10 m |
| Pipe Extension (Maximum Pipe Length) | 20 m | 20 m | 30 m | 30 m | 30 m |
| Pipe Extension (Maximum Elevation Length) | 15 m | 15 m | 20 m | 20 m | 20 m |
| Pipe Extension (Additional Refrigerant Gas*) | 10 g/m | 10 g/m | 15 g/m | 15 g/m | 25 g/m |
| Power Supply | Indoor | Indoor | Indoor | Indoor | Outdoor |
| Odour Removing Function | Yes | Yes | Yes | Yes | Yes |
| Removable, Washable Panel | Yes | Yes | Yes | Yes | Yes |
| Wi-Fi | Optional (Network adaptor required) | Optional (Network adaptor required) | Optional (Network adaptor required) | Optional (Network adaptor required) | Optional (Network adaptor required) |
| 24-Hour Dual ON & OFF Real Setting Timer | Yes | Yes | Yes | Yes | Yes |
| LCD Wireless Remote Control | Yes | Yes | Yes | Yes | Yes |
| Wired Remote Control | Optional | Optional | Optional | Optional | Optional |
| Powerful Mode | Yes | Yes | Yes | Yes | Yes |
| Sleep Mode | Yes | Yes | Yes | Yes | Yes |
| Quiet Mode | Yes | Yes | Yes | Yes | Yes |
| Soft Dry Operation Mode | Yes | Yes | Yes | Yes | Yes |
| Airflow Direction Control (Up & Down) | Yes | Yes | Yes | Yes | Yes |
| Manual Horizontal Airflow Direction Control | Yes | Yes | Yes | Yes | Yes |
| Inverter Control | Yes | Yes | Yes | Yes | Yes |
| ECO Mode with A.I. | Yes | Yes | Yes | Yes | Yes |
| Random Auto Restart | Yes (32 Restart Patterns) | Yes (32 Restart Patterns) | Yes (32 Restart Patterns) | Yes (32 Restart Patterns) | Yes (32 Restart Patterns) |
| Blue Fin Condenser | Yes | Yes | Yes | Yes | Yes |
| Long Piping (maximum) | 20 m | 20 m | 30 m | 30 m | 30 m |
| Top Panel Maintenance Access | Yes | Yes | Yes | Yes | Yes |
| Self-Diagnostic Function | Yes | Yes | Yes | Yes | Yes |
| Note | *When pipes are not extended from the chargeless pipe length, the required amount of refrigerant is already in the unit. Please read the Installation Instructions carefully before installing the unit, and the Operating Instructions before using it. Specifications are subject to change without prior notice. |
*When pipes are not extended from the chargeless pipe length, the required amount of refrigerant is already in the unit. Please read the Installation Instructions carefully before installing the unit, and the Operating Instructions before using it. Specifications are subject to change without prior notice. |
*When pipes are not extended from the chargeless pipe length, the required amount of refrigerant is already in the unit. Please read the Installation Instructions carefully before installing the unit, and the Operating Instructions before using it. Specifications are subject to change without prior notice. |
*When pipes are not extended from the chargeless pipe length, the required amount of refrigerant is already in the unit. Please read the Installation Instructions carefully before installing the unit, and the Operating Instructions before using it. Specifications are subject to change without prior notice. |
*When pipes are not extended from the chargeless pipe length, the required amount of refrigerant is already in the unit. Please read the Installation Instructions carefully before installing the unit, and the Operating Instructions before using it. Specifications are subject to change without prior notice. |
